Most submersible pump replacements around Weatherford run $1,800 to $4,500, including the pump, wire, fittings and labor. The median pump setting near Weatherford is about 200 ft, where replacements land toward the lower half of that range. Aledo's 280-ft sets and Hood County's deeper wells cost more.
24/7 · Weatherford & Parker County
Well Pump Replacement for Weatherford-Area Wells
When the motor or pump end has failed, the replacement should fit the well you have now, not the one you had when the old pump went in.
(817) 382-3840 · Open 24 hours, 7 days a week
Call if you see
- Motor tests open or grounded from the surface
- Pump runs but can't build pressure
- Breaker trips every time the pump starts
- Pump is 10–15 years old and failing repeatedly
- Water level has dropped below the old setting
Last updated
Water Well Drilling Weatherford handles well pump replacement across Parker County, and the rule is simple: measure first, then buy the pump. A replacement pump that goes into the same hole at the same depth as the old one can repeat whatever killed it, whether that was running dry, short cycling or a water level that has dropped since the well was drilled.
Sizing the new pump
A submersible pump is chosen by two numbers. The first is the flow you need, in gallons per minute: a household typically needs 8–12 gpm at peak, and more with irrigation or livestock. The second is total lift, which runs from the pumping water level up to the pressure tank plus the pressure it has to build. Near Weatherford, state driller reports put the median static water level of new wells at about 110 ft and the median pump setting at about 200 ft. Around Aledo it is 176 ft and 280 ft. Those differences change the pump model, the motor size and sometimes the wire gauge.

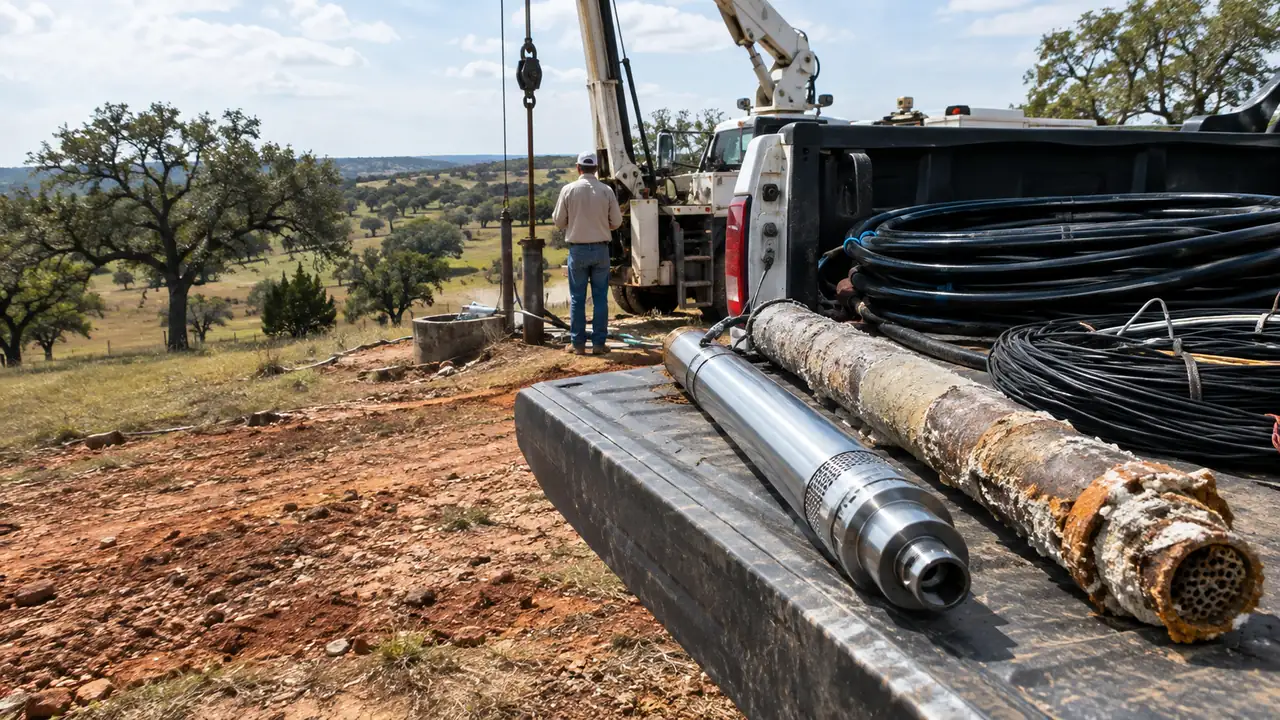

What comes out with the old pump
Pulling the pump is the one chance to inspect everything below the pitless adapter:
- Drop pipe for corrosion, thread wear or splits. Galvanized pipe in Trinity water often shows heavy scale.
- Wire and splice for nicks and water intrusion. A failed splice can look exactly like a failed motor.
- The pump intake for sand or iron buildup, which tells us whether the pump sat too low or the well needs rehabilitation.
- The water level, measured while the well is open.
Controls that match the pump
Three-wire pumps need a control box rated for that motor, and every pump needs a tank large enough for a minute of run time per start. As a rule of thumb, that’s about one gallon of tank drawdown per gallon per minute of pump output. A 10 gpm pump wants a 30–40 gallon tank. We match the pressure tank and switch to the new pump rather than leaving an undersized tank to cycle it to death.
Costs and timing
Most replacements are done the same day once the pump is in hand. At the 180–310 ft settings common in Parker County, expect $1,800–$4,500. The price goes up for deep sets, new pipe and wire, or a constant-pressure drive. See the full breakdown in well pump replacement cost.
Typical cost
$1,800–$4,500 at typical Parker County settings
Pumps set at 180–310 ft, the common range here. Sets deeper than 400 ft, or a new constant-pressure drive, can run $4,000–$6,000 or more.
What's included on every well pump replacement call
- Static water level measured before sizing the new pump
- Pump chosen by flow (gpm) and total lift, not by old horsepower
- Drop pipe, wire and splice inspected on the way out, replaced if worn
- Heat-shrink waterproof splice and torque arrestor on the new set
- Check valves placed to stop water hammer and back-spin
- Control box, switch and tank pre-charge matched to the new pump
- Well disinfected and system cycled to confirm pressure and flow
- Pump model, horsepower and setting depth written down for your records
Related resources for well pump replacement
Well Pump Replacement: three ways it gets done
| Item | Do it yourself | Cheapest bid | Done to standard |
|---|---|---|---|
| Sizing | Match the old horsepower | Whatever is in stock | Flow and lift calculated from the measured water level and pipe run |
| Setting depth | Same as before | Same as before | Set for today's water level with room for summer drawdown |
| Pipe and wire | Reused regardless of condition | Reused to keep the price low | Replaced when corroded, kinked or nicked; splice heat-shrink sealed |
| Controls | Old switch and tank kept | Old switch and tank kept | Control box, switch and tank matched to the new pump |
How well pump replacement works, start to finish
-
Confirm it's the pump
Surface tests rule out the switch, control box, tank and wiring first. Nothing gets pulled until the numbers point down the hole.
-
Price the options
You see the replacement price in writing, with and without new pipe and wire, before any equipment is pulled.
-
Pull and inspect
The old pump comes up. The pipe, wire, splice and pitless adapter are inspected, and the water level is measured.
-
Set, disinfect, verify
The new pump goes in at the right depth, the well is chlorinated, and the system is cycled until pressure and flow are right.
Need well pump replacement in Weatherford or Parker County?
A person answers 24/7 and prices the job before work starts.
Well Pump Replacement questions
How much does well pump replacement cost in Weatherford?
Should I replace the pump or just repair it?
If the problem is a switch, capacitor or wiring, repair it. If the motor is shorted or the pump is worn out and more than 8–10 years old, replacement usually makes more sense than a rebuild. Our repair-or-replace guide walks through the numbers.
What is a constant-pressure pump system?
A variable-speed drive runs the pump faster or slower to hold steady pressure, instead of switching between cut-in and cut-out. It gives shower-steady pressure and allows a smaller tank, but costs more up front and adds electronics that can be damaged by lightning.
How long does a new submersible pump last?
Typically 8 to 15 years. Short cycling, sand, running dry and power surges are what shorten that. A correctly sized tank and a pump set above the sediment zone do more for pump life than the brand on the label.
Do you answer after hours and on weekends?
Yes. The phone is answered 24 hours a day, 7 days a week. After-hours work is priced before we roll, and if the fix can safely wait until morning we will tell you so.
